Surge Protector Device

  • Voltage protection level
    • L - N : 2.0 kV
    • N - PE : 2.0 kV
  • Maximum continuous operating voltage
    • L - N : AC 320V / 48 ~ 62Hz
    • N - PE : AC 255V
  • Surge protection class and capacity
    • L - N : T2 in 40 kA / imax 80 kA
    • N - PE : T2 in 40 kA / imax 80 kA
  • Dimension
    • (285 x 180 x 182) 500W
    • (350 x 240 x 232) 1kW, 2kW
  • Serial surge protector
  • Overvoltage drop due to surge using the saturation characteristics of transformer
  • Load protection using high-speed switching parts (IGBTs) capable of clamping overvoltages
  • Groundless type surge protector using dummy resistor
  • Surge counter, voltage, current, temperature, etc. can be measured and stored through EEPROM
  • Equipped with upper level communication (RS-485) function (optional)
  • CE Certified Products

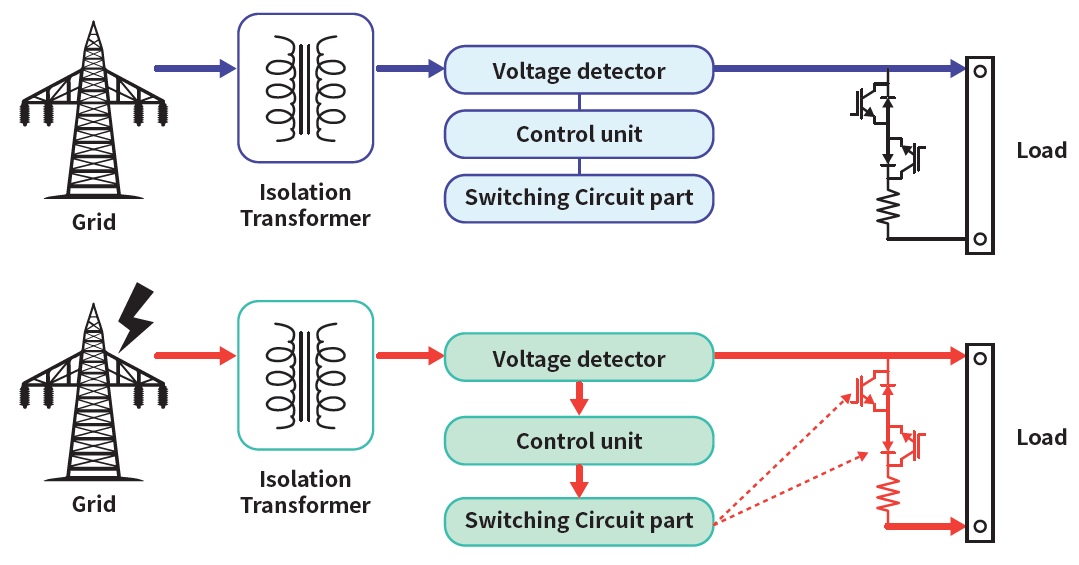

Block Diagram
